Betonghåltagning

Adapters for CARAT diamond drills, with M16 thread.

Adapters for CARAT diamond drills, with M30x2 thread.

Adapters for CARAT diamond drills, with M30x2 thread.

Transition between external machine attachment 1 1/4" to Fröken drill attachment. Fits Dima's diamond core drill with Fröken drill attachment.

Transition between external machine mount 1 1/4" to Pixie drill mount. Fits Dima's diamond core drill with Pixie drill mount.

Transition between external machine mount 1 1/4" to Pixie drill mount. Used in conjunction with anti-friction element placed between the adapter and the drill, acts as a spring-loaded washer and facilitates removal of the drill from the adapter. Fits Dima's diamond core drill with Pixie drill mount.

Adapter for using diamond core drill with Fröken drill attachment together with drill machine equipped with quick chuck or key chuck. 3-Edge attachment for secure grip in the chuck. Fits Dima's diamond core drill with Fröken drill attachment.

Adapter for using diamond core drills with Pixie drill attachment together with drilling machine equipped with quick chuck or key chuck. 3-Edge attachment for secure grip in the chuck. Fits Dima's diamond core drill with Pixie drill attachment.

Transition between machine attachment Fröken to Pixie drill attachment. Fits Dima's diamond core drill with Pixie drill attachment.

Adapter for using diamond core drills with Fröken drill attachment together with SDS-Max hammer drills. Complete adapter consists of transition and chuck mount. Fits Dima's diamond core drill with Fröken drill attachment.

Adapter for using diamond core drills with Pixie drill attachment together with SDS-Max hammer drills. Complete adapter consists of transition and chuck mount. Fits Dima's diamond core drill with Pixie drill attachment.

Adapter for using diamond core drills with Fröken drill attachment together with SDS-Plus hammer drills. Complete adapter consists of transition and chuck mount. Fits Dima's diamond core drill with Fröken drill attachment.

Adapter for using diamond core drills with Pixie drill attachment together with SDS-Plus hammer drills. Complete adapter consists of transition and chuck mount. Fits Dima's diamond core drill with Pixie drill attachment.

Practical aid that facilitates the handling and movement of diamond core drills. Fits Dima's diamond core drill with Pixie drill attachment.

Extension for diamond drill.
For extension with drill attachment 1/2"G the minimum drill diameter is 31 mm.
For extension with drill attachment 5/4"UNC the minimum drill diameter is 51 mm.

Extension for diamond drill with M16 attachment. Fits drill with machine attachment 5/8" x 16 UNF.

Extension for diamond drill. Minimum diameter for drill 41 mm.

Center drill that fits the Carat holder for diamond drills. 2-pack.

Center pin for Nastroc diamond core drills. For dry drilling in brick and other stone materials.

Diamond drill for drilling holes in concrete and hard rock types. Laser treated inserts equipped with "fixed tip".
Drill holder: M30
Quality: Classic
Segment height: 10 mm

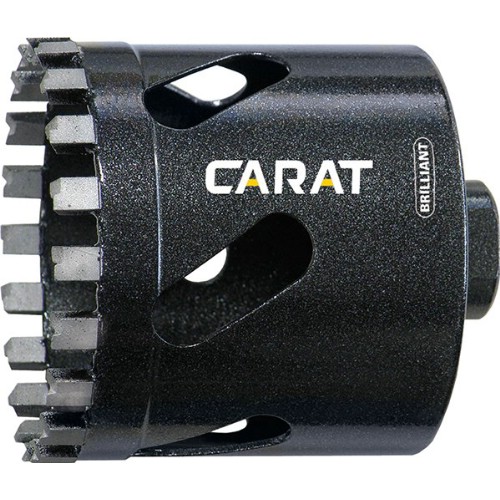

Laser-welded diamond drill for dry drilling in hollow core plates and reinforced concrete. The drill is designed with spiral grooves for efficient cooling and removal of dust. Stable drilling and designed with turbo cutting.
Drill attachment: 5/4"UNC
Quality: Brilliant
Segment height: 10 etc

Diamond drill for drilling holes in concrete and hard rock types. Laser treated inserts.
Drill attachment: M30x2
Quality: Master
Segment height: 11.5 mm

Diamond drill for drilling holes in concrete and hard rock types. With silver soldered fastip segments.
Drill attachment: 5/4"UNC
Tough height elements: 7 mm

(HTML text not available)

Diamond drill for dry drilling/hole making in brick and other soft stone types. With slots in the side.
Drill attachment: M16
Segment height: 5.5 mm

(HTML text not available)

(HTML text not available)

Diamond drill for drilling holes in brick and brick. Easy to mount on drilling machine with 13 mm chuck or SDS drill chuck. Drill length 150 mm which can be extended up to 300 mm together with an extender.
Drill attachment: M16
Segment height: 7 mm
Number of segments/ drill:
Ø 32-52 mm = 3 pcs
Ø 82 mm = 4 pcs
Ø 112 mm = 5 pcs
Ø 132 mm = 6 pcs

Diamond drill for drilling holes in brick and other soft stone types. With laser welded segments. Laser treated inserts.
Drill holder: M16
Segment height: 9.5 mm

Diamond drill for dry drilling in brick and other stone materials. With laser-welded turbo-twisted segments. Diamond drill with groove in the flange for dust extraction.
Drill attachment: M16
Segment height: 9.5 mm
Number of segments/drill:
Ø 68 mm = 3 pcs
Ø 72-92 mm = 4 pcs
Ø 102-112 mm = 5 pcs
Ø 122-152 mm = 6 pcs
Ø 162 mm = 7 pcs

Diamond drill for drilling sockets for electrical boxes in brick and other stone materials. Usable drill length 60 mm. Threaded attachment for mounting spindle and drill chuck. Laser welded teeth.
Drill attachment: M16
Segment height: 7 mm
Number of TT segments: 4 pcs
Quality: Economy

Diamond drill for drilling sockets for electrical boxes in brick and other stone materials. Usable drill length 60 mm. Threaded attachment for mounting spindle and drill chuck. Laser welded teeth.
Drill attachment: M16
Segment height: 9.5 mm
Number of TT segments: 4 pcs< BR>Quality: Premium

Diamond drill for drilling sockets for electrical boxes in brick and other stone materials. Usable drill length 60 mm. Threaded attachment for mounting spindle and drill chuck. Laser welded teeth.
Drill attachment: M16
Segment height: 9.5 mm
Number of TT segments: 5 pcs< BR>Quality: Super

(HTML text not available)

Laser-welded diamond core drill for drilling holes in concrete and hard rock types. Suitable for use with Carat core drilling machines or similar makes.
Drill attachment: Fröken (ext. thread R 1/2")
Segment height: 12 mm

Laser-welded diamond core drill for drilling holes in concrete and hard rock types. Suitable for use with Carat core drills or similar makes.
Drill attachment: Pixie (CR128)
Segment height: 12 mm

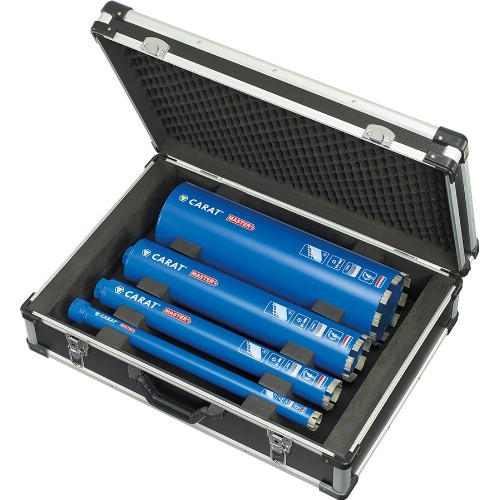

Diamond drill set in 4 parts. Diamond drill with laser-welded segments, adapted for drilling in concrete and hard rock types. Laser-treated inserts equipped with "fixed tip". Supplied in storage bag.
Drill attachment: M30
Quality: Classic
Length: 400 mm
Segment height: 10 mm

Diamond drill set in 4 parts. Diamond drill with laser-welded segments, adapted for dry drilling in hollow core plates and reinforced concrete. The drill is designed with spiral grooves for efficient cooling and removal of dust. Stable drilling and designed with turbo cutting. Diatex. Supplied in storage case.
Drill bit: 5/4"UNC
Quality: Brilliant
Length: 300mm
Segment height: 10 mm

Diamond drill set with 3 diamond drills Ø 82x60, Ø 132x340, Ø 162x340 mm, for drilling holes in brick and brick. Specially developed for professional hole punchers. Easy to mount on drilling machine with 13 mm chuck or SDS drill chuck. With Dustec dust extractor, center drill and support discs. Delivered in transport bag.

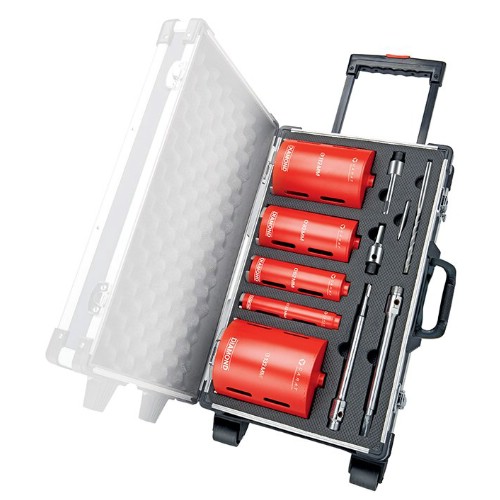

Diamond drill set with 5 diamond drill bits Ø 32, 52, 82, 112 and 132 mm for drilling holes in brick and brick. Easy to mount on drilling machine with 13 mm chuck or SDS drill chuck. Drill length 150 mm which can be extended up to 300 mm together with the extender included in the kit.
Supplied in an aluminum transport case with wheels.
